## Why Silkscreen Matters in SMT Manufacturing

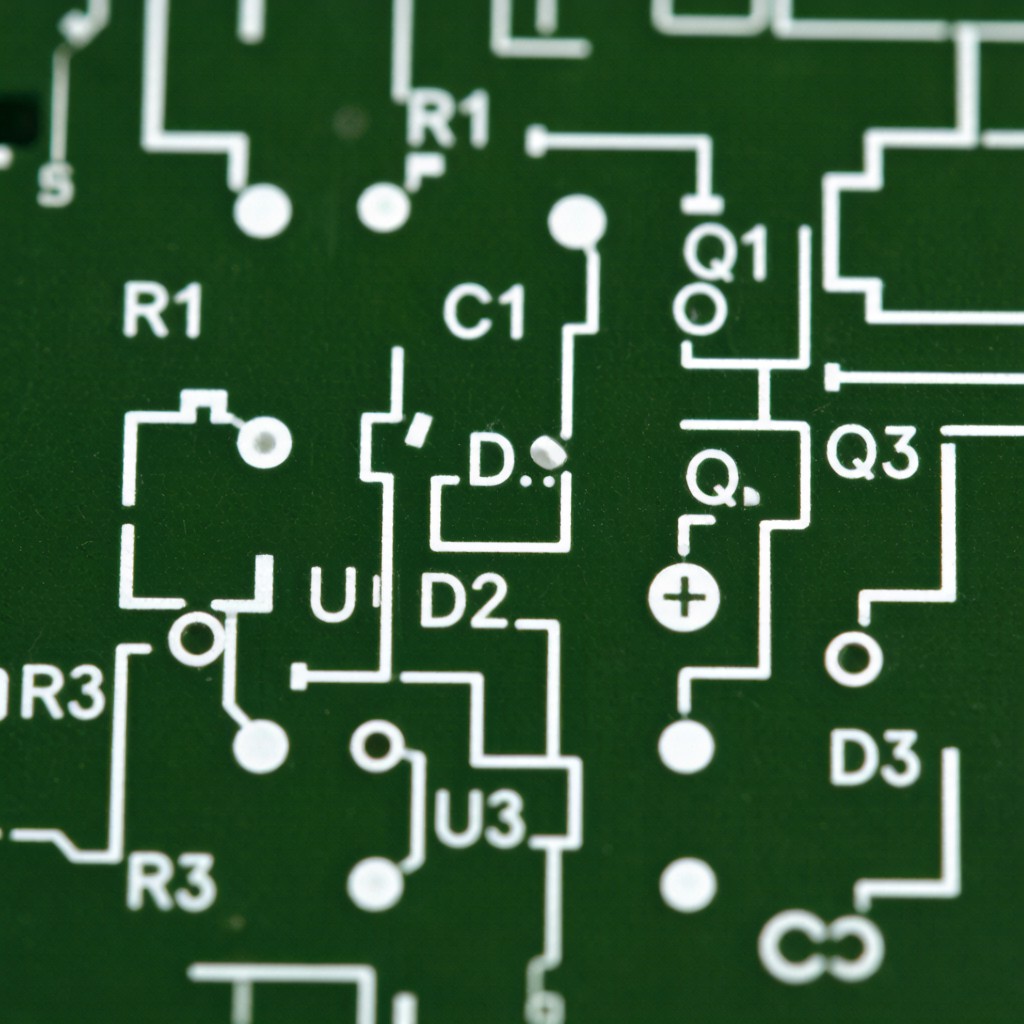

The silkscreen layer—printed as white (or contrasting) legends on the PCB solder mask surface—is often treated as an afterthought in PCB design, relegated to automatic designator placement with minimal designer oversight. Yet this layer serves three critical manufacturing functions: guiding SMT pick-and-place operators during manual assembly and rework, enabling automated optical inspection (AOI) orientation verification, and supporting field service technicians who must identify and replace components without schematic access.
A well-designed silkscreen reduces assembly errors by 15–30% in production environments, according to IPC-7351B survey data. Poor silkscreen—overlapping text, missing polarity marks, illegible reference designators—directly increases rework rates, extends debugging time, and creates liability in safety-critical applications where component identification errors can have serious consequences. This article examines the technical design rules, industry standards, and practical trade-offs that determine silkscreen quality for SMT manufacturing.
## Reference Designator Placement Rules
Reference designators (R1, C2, U3, etc.) identify each component on the board. Their placement follows specific rules in IPC-7351B and manufacturer guidelines:
### Position Relative to Component
The designator should be placed outside the component footprint boundary in one of four preferred positions, prioritized as follows:
1. Above the component (north position) — preferred for all component types
2. Below the component (south position) — acceptable when north is occupied
3. Left of component (west position) — for vertically-oriented components
4. Right of component (east position) — least preferred
The designator must never be placed under the component body where it becomes invisible after assembly. For fine-pitch SMT components (≤ 0.5 mm pitch QFP, QFN), the designator should be offset 0.5–1.0 mm from the pad edge to avoid overlapping solder paste printing areas.
### Font Size and Legibility
Minimum silkscreen font sizes are governed by both PCB fabricator capability and assembly readability requirements:
| Font Size | Line Width | Minimum Application | Typical Use |
|———–|————|——————–|————-|
| 0.5 mm (20 mil) | 0.08 mm | Not manufacturable by most fabs | — |
| 0.6 mm (24 mil) | 0.10 mm | Marginal, avoid if possible | Very dense boards |
| 0.8 mm (32 mil) | 0.13 mm | Minimum recommended per IPC-7351B | Standard SMT |
| 1.0 mm (40 mil) | 0.15 mm | Good legibility, preferred | Most applications |
| 1.2 mm (48 mil) | 0.18 mm | Excellent legibility | Prototypes, rework boards |
| 1.5 mm (60 mil) | 0.20 mm | Maximum readability | Power boards, field service |
The line width (stroke width) must be at least 0.10 mm for reliable screen printing, and at least 0.08 mm for direct legend printing (photo-imaged silkscreen). At line widths below 0.08 mm, ink spread during screen printing causes character fill and illegibility—particularly problematic for characters with enclosed regions (A, B, D, O, P, Q, R, 0, 4, 6, 8, 9).
## Polarity and Orientation Indicators
### Diode and Capacitor Polarity
Every polarized component requires a clear polarity indicator on the silkscreen. For SMT diodes (SOD-323, SOD-523, SMA/SMB packages), the cathode bar indicator must be visible after component placement—it should be positioned on the cathode pad side, outside the component body footprint, with minimum 0.5 mm clearance from the pad edge.
For tantalum and aluminum electrolytic capacitors, the positive terminal indicator (+) must be placed adjacent to the positive pad. A common production error is placing the polarity mark under the component body, where it becomes invisible after assembly and forces technicians to reference the schematic during rework. The indicator should use a minimum 1.0 mm font height with bold stroke width (0.15 mm minimum).
### Pin-1 and Orientation Marks
IC packages require Pin-1 identification marks that survive assembly and remain visible for inspection:
– QFP/QFN packages: Dot or chamfer mark in the Pin-1 corner, minimum 0.5 mm diameter, placed 0.3–0.5 mm outside the component body outline
– BGA packages: Pin-1 mark on the board surface (the BGA body obscures top marks after assembly), positioned adjacent to the Pin-1 corner pad cluster
– SOT packages: Pin-1 mark on the emitter/base/gate pad side with arrow indicating pin sequence direction
A common design mistake is using the component footprint outline corner as the Pin-1 indicator rather than a separate dedicated mark. The footprint outline serves the pick-and-place machine for component alignment, but AOI systems and human inspectors need an explicit Pin-1 dot that is independent of the outline geometry.
## Component Outlines and Body Boundaries
### Footprint Outline vs Silkscreen Outline
The component footprint outline (courtyard boundary) defined in IPC-7351B serves a CAD function—defining the minimum keep-out zone around the component for placement density calculation. This outline should be drawn on a separate mechanical layer, not on the silkscreen, because it often overlaps adjacent component pads and traces when boards are densely populated.
The silkscreen outline, conversely, should show only the visible component body boundary—the physical shape that an inspector or technician can verify after assembly. For rectangular SMT components (chip resistors, capacitors), this is a simple rectangle matching the component body dimensions with 0.1–0.2 mm margin. For irregular packages (SOT-23 with three leads, DPAK with tab), the outline should match the actual body shape, excluding the lead wings that extend beyond the package.
### Dense Board Silkscreen Strategy
When component density exceeds 80% placement area utilization, full component outlines become impractical—they overlap each other and obscure pad geometry. Practical alternatives for dense boards:
1. Pin-1 dots only: Replace outlines with 0.5 mm Pin-1 dots for each IC, eliminating outline clutter while preserving orientation information
2. Partial outlines: Draw only the top and left edges of component outlines (L-shape), reducing overlap while maintaining position reference
3. Designator-only approach: Eliminate outlines entirely, relying solely on reference designators positioned outside each component. This requires meticulous designator placement but maximizes readability in dense layouts
## Manufacturing-Specific Silkscreen Elements
### Test Point Identification
Every test point on the board should have a silkscreen label indicating its function: TP1, TP_VCC, TP_GND, or a descriptive name (TP_5V, TP_3V3, TP_RST). The label should be positioned 0.5–1.0 mm from the test point pad, with a minimum 1.0 mm font size for probe-tip visibility during in-circuit test (ICT) fixture programming.
Test point pads should also include a distinctive silkscreen symbol—a circle, square, or arrow—that differentiates them from component pads and via holes. Without this marking, test engineers must trace schematic co
ections to identify accessible test points, adding hours to fixture development time.
### Board Edge and Co
ector Marking
Board edges should carry critical identification information:
– Board name and revision: Minimum 1.5 mm font, positioned at board edge for visibility when cards are stacked
– **Co
ector pin numbering**: Pin-1 marks and sequential pin labels on co
ector footprints (J1-1, J1-2… or simplified 1, 2, 3… for high-density co
ectors)
– Mounting hole labels: MH1, MH2 with torque specification notes where applicable
– ESD warning symbols: For boards handling sensitive semiconductor devices
### Fiducial Mark Documentation
Global fiducials (3 required per IPC-7351B for double-sided boards) should be labeled F1, F2, F3 on the silkscreen, positioned at board corners or edges. Local fiducials near fine-pitch component groups should be labeled LF1, LF2, etc. The fiducial label serves the pick-and-place programmer who must identify fiducial locations for machine vision calibration.
## Silkscreen Design Checklist
Before releasing a PCB design for fabrication, verify these silkscreen quality items:
1. All reference designators present and legible (outside component bodies, ≥ 0.8 mm font)
2. Polarity marks visible after assembly (not under component bodies)
3. Pin-1 indicators present for all IC packages (dots, not outline corners)
4. No silkscreen on solder pads (overlapping silkscreen on exposed copper prevents solder wetting)
5. Test points labeled with descriptive names and distinctive symbols
6. Board identification present (name, revision, date code location)
7. **Co
ector pin-1 marks** visible and unambiguous
8. No overlapping text between adjacent components (minimum 0.2 mm text-to-text clearance)
9. Critical warning labels (high voltage, ESD sensitive, reverse polarity risk)
10. Fab house line width compliance (≥ 0.10 mm stroke width for screen printing)
## Conclusion
Effective PCB silkscreen design is a manufacturing documentation task, not a decoration exercise. Every mark on the silkscreen layer should serve a specific function: identifying a component, indicating polarity or orientation, marking a test point, or warning of a hazard. Following IPC-7351B placement rules, maintaining minimum font sizes and line widths, and ensuring that all critical marks survive assembly visibility requirements transforms the silkscreen from a liability (illegible, overlapping, incomplete) into an asset that reduces assembly errors, accelerates inspection, and supports reliable field maintenance. The time invested in careful silkscreen design pays dividends across every phase of the product lifecycle—from first article build through volume production to end-of-life field service.
