Introduction: ESD Is the Silent Killer of SMT Components
Modern surface-mount devices are highly sensitive to electrostatic discharge. A single 100 V event — well below human perception — can puncture a MOSFET gate oxide, fracture an LED junction or corrupt a microcontroller’s flash memory. Because the damage is often latent (component passes initial test but fails in the field), ESD losses are difficult to trace and account for an estimated 8–33% of all electronics field failures.
The standard defense is to keep components inside an electrostatic protected area (EPA), where every surface — workbench, tote, reel, tray, even the operator’s chair — is electrically dissipative rather than insulative. SMT reels and carrier tapes are the packaging that holds individual components from the moment they leave the wafer fab until they arrive at the pick-and-place machine. If these reels are made of unmodified polypropylene (PP), they hold static charge indefinitely, so any component sliding against the reel face can be damaged by an uncontrolled discharge.
Carbon-black-filled black PP solves this by raising the polymer’s electrical conductivity just enough to allow charge decay in milliseconds rather than hours. The formulation challenge is hitting the narrow “static dissipative” conductivity window — too conductive and the material may cause shorting; too resistive and ESD events can still occur.
Defining ESD-Safe Plastics: The Resistivity Spectrum
The ANSI/ESD S541 standard classifies packaging materials by surface and volume resistivity:
| Classification | Surface Resistivity (Ω/sq) | Volume Resistivity (Ω·cm) | Use |
|---|---|---|---|
| Conductive | < 10⁵ | < 10⁴ | Ground planes, Faraday cage (rare for SMT reels) |
| Static Dissipative | 10⁵–10¹¹ | 10⁴–10¹⁰ | SMT reels, trays, totes — the target band |
| Anti-static | 10¹¹–10¹² | 10¹⁰–10¹² | Marginal; not recommended for unprotected handling |
| Insulative | > 10¹² | > 10¹² | Unsafe for direct ESD-sensitive contact |
The sweet spot for SMT reel and carrier tape is 10⁶ to 10⁹ Ω/sq, which provides charge decay in milliseconds without creating a low-impedance path for accidental shorts or ground faults. Most commercial antistatic PP formulations target this band.
Carbon Black as the Antistatic Filler
Why Carbon Black?
Carbon black (CB) is the dominant antistatic filler for PP because it is inexpensive, black-colored (an industry requirement for ESD packaging to indicate protective material), and effective at low loading. Other fillers — carbon nanotubes (CNT), graphene nanoplatelets (GNP), metallic fibers — give similar resistivity at lower loading but cost 50–200× more and are difficult to disperse uniformly.
Loading and Percolation
Conductivity in filled polymers follows percolation theory. Below a critical loading (the percolation threshold), conductivity rises slowly with filler fraction; above threshold, small additional loading yields dramatic conductivity increase:
σ ~ (p − pc)t
where p is filler volume fraction, pc is the percolation threshold, and t is a critical exponent (~1.65 in 3D). For carbon black in PP:
| CB Loading (wt%) | CB Loading (vol%) | Surface Resistivity (Ω/sq) | Notes |
|---|---|---|---|
| 8 | 4.5 | 10¹³ | Below percolation; ineffective |
| 12 | 7.0 | 10⁹–10¹⁰ | Percolation threshold range |
| 15 | 9.0 | 10⁶–10⁸ | Standard antistatic PP |
| 20 | 12.0 | 10⁴–10⁵ | Borderline conductive |
| 25+ | 15.5+ | 10²–10³ | Conductive; mechanical brittleness |
The standard formulation for SMT reels is 14–18 wt% CB, giving 10⁶–10⁸ Ω/sq — comfortably in the middle of the static-dissipative band.
Carbon Black Type and Morphology
Not all CB grades deliver the same resistivity. Key parameters:
- Surface area (BET): Higher surface area (e.g. 1000 m²/g vs 250 m²/g) lowers percolation threshold. Specialty “conductive” grades have 800–1500 m²/g.
- DBP absorption: Higher oil absorption means more branched CB aggregates, which form conductive networks more easily.
- Aggregate structure: High-structure CB (fused, branched aggregates) creates percolation at lower loading than low-structure CB (round primary particles).
Industry-standard conductive CB grades include Cabot Vulcan XC-72, Birla Carbon Conductex 706, and AkzoNobel Ketjenblack EC-600 JD (the last a “super-conductive” variant requiring only 5–8 wt%).
Mechanical Property Implications
Adding 15–18 wt% CB is not free: the filler stiffens and embrittles the PP matrix. Typical property changes:
| Property | Neat PP Homopolymer | PP + 17 wt% CB | Change |
|---|---|---|---|
| Tensile Strength (MPa) | 33 | 28 | -15% |
| Elongation at Break (%) | 350 | 12 | -97% |
| Flexural Modulus (GPa) | 1.5 | 2.4 | +60% |
| Notched Izod Impact (J/m) | 40 | 28 | -30% |
| Heat Deflection @ 0.45 MPa (°C) | 100 | 125 | +25% |
| Melt Flow Rate (g/10 min, 230°C/2.16 kg) | 12 | 6 | -50% |
The dramatic loss in elongation is the most important for SMT packaging: reels need to be rigid enough to maintain dimensional stability but tough enough not to crack when the cover tape is peeled off. Impact-modified PP copolymer (rather than homopolymer) is often used as the base resin to retain some toughness.
Injection Molding Considerations
Shear and Dispersion
Carbon black agglomerates must be broken down during compounding to develop full conductivity. Inadequate shear results in inconsistent resistivity. Compounders use twin-screw extruders with high L/D ratios (40:1 or higher) and specific mixing elements to achieve uniform dispersion. Resin lot certificates should report surface resistivity measured on compression-molded plaques per ASTM D257.
Molding Process Adjustments
Compared to unmodified PP, antistatic PP requires:
- Higher melt temperature (240–260°C vs 220–240°C) to compensate for increased viscosity from CB loading
- Higher injection pressure (10–20% increase) to maintain cavity fill
- Slower injection speed during packing to avoid surface gloss issues and CB streaks
- Hotter mold (60–80°C) to minimize frozen-in stress and post-mold warpage
Reels and carrier tapes are typically produced on high-cavity tools (32 to 96 cavities) using hot ru
er systems with polished cavity surfaces to prevent CB particle release.
Qualification and Compliance
ANSI/ESD S541 and S11.31
Manufacturing and testing of ESD-protective packaging follow:
- ANSI/ESD S541: Materials characterization — surface and volume resistivity
- ANSI/ESD S11.31: Evaluation of packaging materials for ESD-sensitive items
- IEC 61340-5-1: Overall EPA system compliance
Compliance is documented by surface resistivity measurement on every production batch (typically 100% inline on molded reels), with quarterly third-party audit testing for full qualification.
Charge Decay Testing
Beyond resistivity, charge decay time is a functional indicator. Per FTMS-101C Method 4046, the material is charged to ±5000 V and the time to decay to ±50 V is measured. Acceptable decay time for SMT reels is below 2 seconds; premium grades achieve under 0.5 seconds.
Sloughing and Contamination
A common failure mode is CB particle shedding (“sloughing”) that contaminates component leads. Quality antistatic PP uses well-bonded CB with no free particles on the surface. Sloughing is tested by an ink-rub or tape-pull method: a clean white cloth or pressure-sensitive tape is applied to the molded surface, removed, and examined for transferred particles.
Tropical and High-Humidity Considerations
PP is largely hydrophobic and not strongly affected by humidity, but antistatic PP can lose some conductivity in tropical climates:
- Surface condensation during storage transition from outdoor to AC environment can briefly raise surface resistivity by one order of magnitude. Allow packaging to equilibrate 4+ hours before use.
- Some manufacturers add a small amount of quaternary ammonium antistatic agent alongside CB to ensure consistent performance across humidity levels.
- Mold-release and surface finish additives may migrate over time, slightly lowering effective resistivity. Specify FDA-grade or electronics-grade additives to avoid contamination.
Conclusion

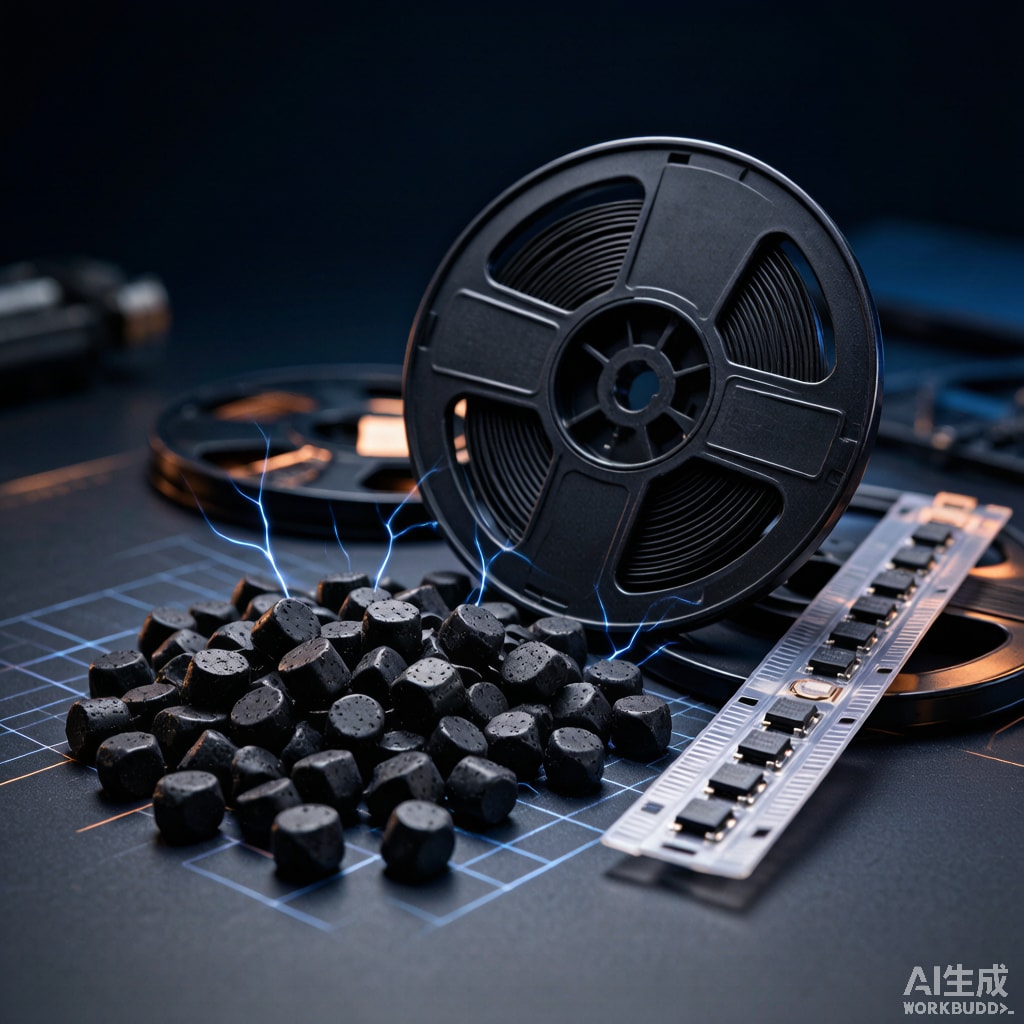

Antistatic black PP filled with carbon black is the workhorse material for SMT component reels, carrier tapes and trays. Hitting the 10⁶–10⁹ Ω/sq static-dissipative band requires careful attention to filler selection, loading, compounding and molding. With proper formulation, the material delivers years of consistent ESD protection while maintaining the dimensional stability and mechanical toughness required for automated pick-and-place handling. For Southeast Asian electronics manufacturing, working with a qualified resin supplier and rigorous batch-level quality testing ensures every reel leaving the line genuinely protects the high-value components it carries.
